Large Span and Fast Assembling Prefabricated House Construction Steel Structure Hotel Prefabricated
Steel structure plant features:
1. steel structure building light weight, high strength, large span.
2. steel structure construction period is short, reduce the investment cost accordingly.
3. steel structure building fire resistance is poor, corrosion resistance, low temperature areas should not use steel structure.
4. steel structure building is easy to move, recycling pollution-free.
| Steel Frame |
H section steel |
Q235steel plate thickness: 8-30mm |

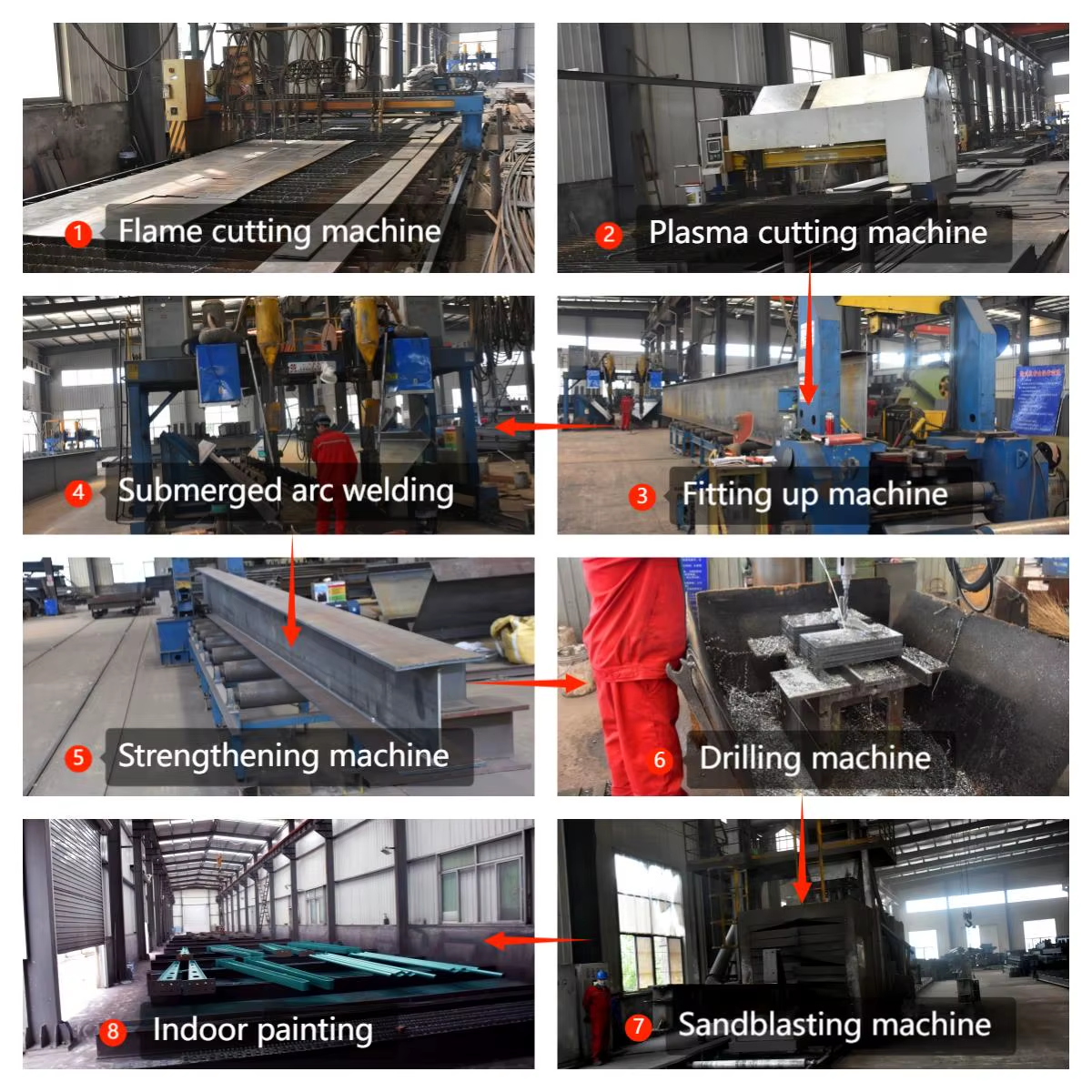

| Welding |
Automatic submerged arc welding |
| Rust removal |
Sand blasting |
| Surface finish |
Alkyd paint or galvanized |
| Intensive bolt |
M20,Grade 10.9 |
| Supporting System |
Angle brace |
L50x4,Steel Q235, processed and painted |
| Horizontal brace |
Φ20, Steel Q235, processed and painted |
| Column brance |
Φ20, Steel Q235, processed and painted |
| Tie rod |
Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt |
M12 Galvanized bolt |
| Roof |
Purlin |
C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel |
Sandwich panel or corrugated steel sheet |
| Sky light |
6mm thick PVC |
| Accessories |
Glass cement, self-tapping screws, etc. |
| Edge cover |
0.4mm steel sheet profile trimming |
| Gutter |
0.4mm thick sheet steel profile or galvanized sheet |
| Down pie |
Φ110PVC |
| Walls |
Purlin |
C160*60*2.5,Steel Q235, painted |
| Wall |
Sandwich panel or corrugated steel plate |
| Accessories |
Glass cement, self-tapping screws, etc. |
| Edge cover |
0.4mm steel sheet profile trimming |
| Ventilation |
Ventilation ball |
| Doors & windows |
Rolling door/sliding door PVC/alu/steel/window |
Steel structure warehouse building workshop hangar
1. KXD Prefabricated Steel Structure Building Products:
Lightweight Steel Structures: Used for small to medium-sized buildings such as warehouses, factories, and commercial spaces. They are cost-effective, lightweight, and quick to assemble. Heavy Steel Structures: Suitable for large-scale buildings like industrial factories, bridges, airports, and stations, these structures have high load-bearing capacities. Multi-story & High-rise Steel Structures: These are used in office buildings, residential complexes, and mixed-use developments. They offer seismic resistance and fast construction timelines.
2. Industrial Steel Structures building:
Factories/Warehouses: Steel structures for industrial facilities, including both single-story and multi-story factory
buildings.Storage Warehouses: Tailored steel structures for storage and logistics needs.
3. Special Steel Structures
Prefabricated Steel Modules: Used for modular construction, allowing for quick installation of pre-assembled units.
Space Frame Structures: Ideal for large-span structures like stadiums, exhibition halls, and airport terminals.
Steel Curtain Walls: Used for building facades in commercial office buildings, creating a modern aesthetic while offering durability.
4. Supporting Products & Services
Roof and Wall Systems: Including color-coated steel panels, insulated sandwich panels, and other weather-resistant materials for efficient thermal insulation and waterproofing. Corrosion & Fire Protection Coatings: Specialized coatings to protect steel from corrosion and to enhance fire safety. Design and Installation Services: Comprehensive services, including structural design, engineering, and on-site construction support.
