Demountable Galvanized Light Steel Structure Building with Customizable Design for Industrial Use

Brand Name : KXD

Model Number : KXD-EQUIPMENT

Certification : CE, ISO 9001, ISO140001, ISO45001

Place of Origin : Qingdao

MOQ : 500 square meters

Price : 20-80 USD per sqm

Payment Terms : L/C,T/T

Supply Ability : 5000 Sets/Month

Delivery Time : 15-35days

Packaging Details : Steel Pallet Or In Bulk

Carbon Structural Steel : Q235b Q355B

Door : Sliding Door/lift Door

Surface Treatment : Painted or Galvanized

Design Software : PKPM, Tekla structures, CAD

Insulation : Optional thermal insulation available

Aesthetics : Modern/Contemporary

Cerification : ISO9001,CE

Usage : Warehouses, factories, workshops, commercial buildings

Connection Form : Bolt Connection

Roof Cladding : Sandwich Panel Glass Wool

Productname : Steel Structure Building

Finishing Options : Paint, Galvanization, Powder Coating

Transportation : Shipping

Visit : Workshop visit and check available

Drawing : CAD, TEKLA, 3D Model, PKPM, BIM

Profile : Hot rolled H steel / Weld H steel

Steel Material : Q235b, Q355B

Wind Resistance : 12 Grades

Earthquake Resistance : 8 Grades

Contact Now

Demountable Prefab Galvanized Light Steel Structure Building

High-quality prefabricated steel structure buildings offering superior performance and flexibility for various construction applications.

Demountable Galvanized Light Steel Structure Building with Customizable Design for Industrial Use

Key Advantages

Stable & sturdy structure
High strength & good seismic resistance
Hot-dip galvanized, anti-corrosion & long lifespan
Light weight but high load capacity
Demountable & reusable
Fast construction & short installation period
Flexible layout & customizable design
Eco-friendly & less construction waste

Project Benefits

Lower overall project cost
Save construction time & labor cost
Reduce maintenance cost in long-term use
Easy to transport & assemble
Can be relocated or expanded as needed
Safer construction process
Durable even in harsh environments

Applications

Warehouse & workshop
Office & staff quarters
School & hospital building
Commercial & exhibition hall
Farm & livestock building
Industrial & multi-storey buildings
Various prefabricated construction projects

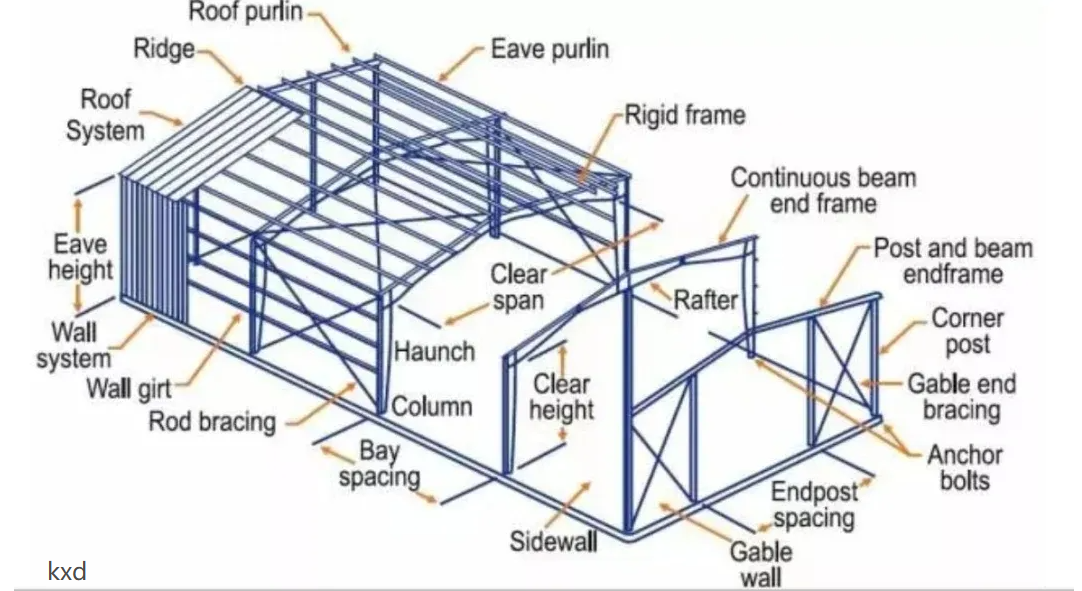

Material Specifications

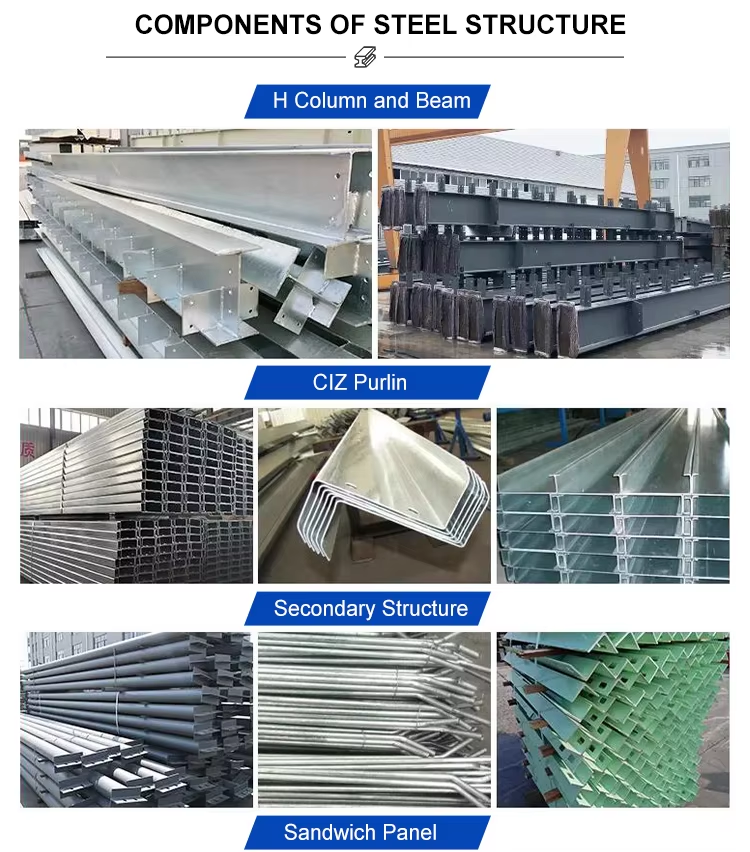

Component	Material	Specifications
Main Steel Frame	Column	Q235, Q355 (Hot Rolled / Welded H Section Steel)
	Beam	Q235, Q355 (Hot Rolled / Welded H Section Steel)
Secondary Frame	Purlin	Q235, Q355 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe

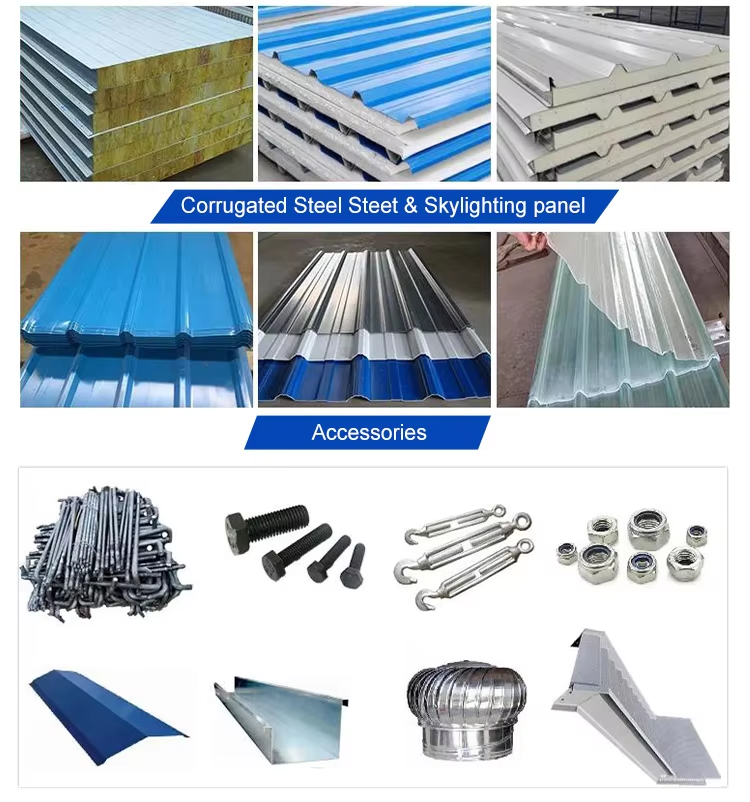

Maintenance System	Roof Panel	Steel Sheet, Insulated Sandwich Panel (EPS / Glass-Fiber / Rock-Wool / PU)
	Wall Panel	Steel Sheet, Insulated Sandwich Panel (EPS / Glass-Fiber / Rock-Wool / PU), Decorative Panel (Glass Curtain, Aluminum Panel)
Accessories	Window	Plastic steel / Aluminum Alloy / PVC Window
	Door	Sliding Door / Electric Rolling Up Shutter / Metal Door / Personal Door
	Rain-spout	PVC

Technical Specifications:

Live load on Roof: 120kg/m² (Color steel panel surrounded)
Wind Resistance Grade: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years
Temperature Range: -50°C to +50°C
Certification: CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options: Vast array of colors and textures available
Paint Options: Alkyd painting / Epoxy painting / Hot Dipping Galvanized

Project Cases

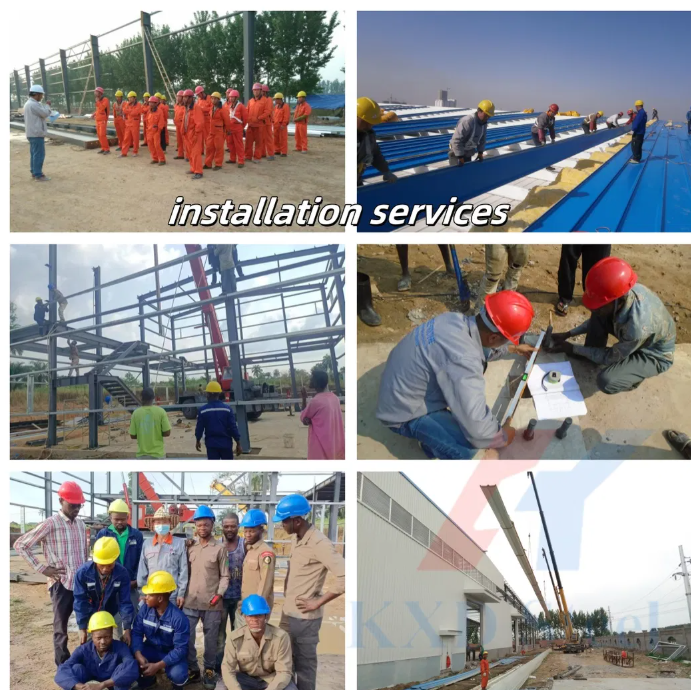

Our Services

Custom Design Information Required

To provide you with the best design solution, please kindly inform us of the following information:

Usage: What will it be used for?
Location: In which country will it be built?
Local climate: Wind speed, Snow load (max. wind speed)
Dimension: Length * width * height
Crane beam: Are there cranes inside the steel structure?
